The global security perimeter and architectural exterior lighting markets are undergoing a structural shift. Municipalities, landscape architects, civil contractors, and enterprise facilities managers are increasingly prioritizing multifunctional perimeter protection. The modern outdoor bollard is no longer merely a physical barrier or an aesthetic light post; it has evolved into a sophisticated convergence of structural impact engineering, anti-terrorism security compliance (PAS68 / ASTM F2656), sustainable solar integration, and smart urban design.
When procuring from the global market—particularly key manufacturing hubs in Asia, Europe, and North America—buyers face significant variance in raw material integrity, surface anti-corrosion treatments, hydraulic reliability, and photometrics. Selecting the right manufacturer requires evaluating technical parameters far beyond initial unit pricing. This comprehensive whitepaper provides project engineers, lighting specifiers, and procurement executives with an empirical benchmark for evaluating the Top 10 Outdoor Bollards Factories & Exporters, establishing actionable standards for Total Cost of Ownership (TCO), material selection, and long-term site reliability.
Evaluation of yield strength, wall thickness (3mm to 16mm+), and crash-test certifications (PAS68, IWA 14-1, ASTM F2656 K4/K8/K12). Top exporters utilize high-tensile carbon steel (Q235/Q354) or 316L stainless steel for maximum kinetic energy absorption.
Long-term outdoor durability requires multi-layer anti-corrosion protocols: Hot-Dip Galvanizing (HDG) per ISO 1461, combined with architectural-grade thermosetting fluoropolymer powder coatings or natural Corten steel weathering patinas.
For automatic bollards: integration of self-contained electro-hydraulic drive units with IP68 submersible ratings and low-drainage battery backup systems. For illuminated bollards: high-efficacy LEDs (>130 lm/W) with Title 24/JA8 dimming compliance.
To assist technical specification teams in reviewing vendor capabilities, the following comparative engineering matrix outlines standard product categories, structural parameters, ingress protection ratings, and optimal enterprise applications across leading global manufacturers.
| Bollard Classification | Primary Material / Alloy | Impact / Protection Rating | Ingress Rating | Operational Mechanism | Optimal Project Application |
|---|---|---|---|---|---|
| Flexible TPU Warning Posts | High-Elastic Polyurethane / TPU | Passive Redirection / 10,000+ Bends | Weatherproof UV-Safe | Surface Mounted Base | Highway Delineation, Parking Lots, Temporary Detours |

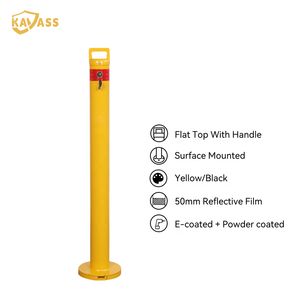

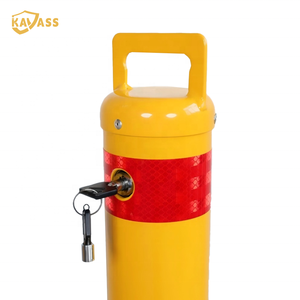

| Removable Detachable Security Posts | Galvanized Carbon Steel (Q235/Q345) | Low-to-Medium Speed Crash Barrier | IP65 (Lock Mechanism) | Saucer Base / Internal Keylock | Private Driveways, Commercial Storefronts, Access Control |

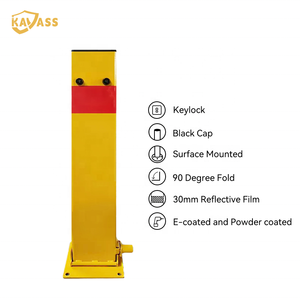

| Collapsible Fold-Down Bollards | Heavy-Duty Steel Pipe (76mm/90mm) | Visual & Mechanical Deterrent | Powder Coated UV-8 | Manual Fold / Padlock Core | Reserved Parking Bays, VIP Lanes, Residential Security |

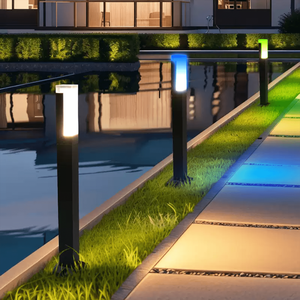

| Architectural LED Pathway Lighting | Die-Cast Aluminum / Extruded 6063 | IK08 / IK10 Vandal Resistant | IP65 - IP67 | Hardwired AC / Solar Hybrid | Luxury Gardens, Urban Plazas, Hospitality Walkways |
| Corten Weathering Steel Bollards | A242 / A588 Corten Alloy Steel | IK10 Structural Rigidity | IP65 Photometric Engine | Anchor Flange Mounting | Heritage Sites, Botanical Gardens, Modern Architecture |

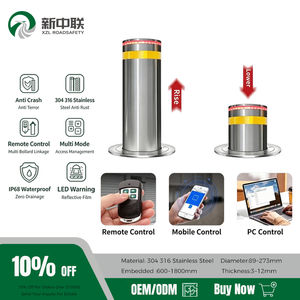

| Automatic Electro-Hydraulic Bollards | 304/316 Stainless Steel (6mm-16mm) | K4 / K12 (PAS68 Impact Certified) | IP68 (Submersible Drive) | Battery Auto-Retractable / Remote | Government Buildings, Airports, High-Security Perimeter |
A primary failure mode in commercial bollard deployment is atmospheric corrosion and mechanical shear failure caused by under-specified metallurgy. Top-tier manufacturers employ rigid material specifications based on installation geography and risk profile.
Carbon steel provides superior tensile strength and ductility at a cost-effective price point, making it the material of choice for security perimeter posts and heavy-duty traffic delineators. However, untreated carbon steel oxidizes rapidly when exposed to atmospheric moisture. Leading factories apply a three-tier protection stack:
For modern architectural environments and coastal installations, stainless steel bollards deliver a sleek visual aesthetic combined with natural passivating chromium oxide protection.
Grade 304 (18/8 Stainless): Suitable for urban inland environments with moderate atmospheric moisture. Excellent tensile resistance and low maintenance requirements.
Grade 316L (Low Carbon Marine Grade): Formulated with 2–3% Molybdenum, Grade 316L offers exceptional resistance to chloride pitting and crevice corrosion. It is strictly specified for coastal perimeters, marine boardwalks, and roadways exposed to winter de-icing salts.

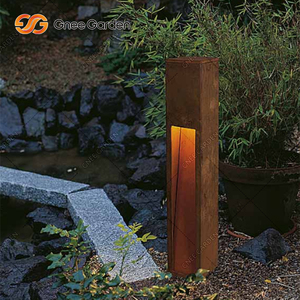

As seen in modern landscape installations, Corten steel bollards utilize a copper-chromium alloy composition. When exposed to outdoor wet-dry cycles, Corten steel develops a tight, stable protective oxide rust layer (patina) rather than continuous flaking rust. This eliminates the need for paint or powder coating, creating a zero-maintenance rust-orange patina that ages gracefully over decades.
Procurement directors must look beyond immediate project requirements to ensure specified hardware complies with evolving municipal standards and smart city infrastructure. The industry is currently transitioning across four core technological vector shifts:
Traditional automatic retractable bollards required extensive civil excavation and complex underground drainage systems to prevent hydraulic pump submersion. 2025 generation designs utilize completely sealed, IP68 self-contained electro-hydraulic actuators with built-in battery units, allowing rapid installation without deep trenching.
Commercial pathway bollards are increasingly adopting top-integrated monocrystalline solar panels paired with long-lifecycle LiFePO4 batteries. Integrated LoRaWAN or Zigbee mesh networks allow remote monitoring of battery health, automated dimming schedules, and motion-activated illumination.
Urban centers constrained by underground utility lines (gas, water, fiber optics) cannot accommodate standard 1.5-meter deep foundations. Shallow-mount bollard designs—requiring foundation depths of just 200mm to 400mm while maintaining K12/M50 crash resistance—are becoming mandatory for city center retrofits.
Specifiers now demand modular flexibility. Base bollards must accept interchangeable top caps, chain eyelets, custom laser-cut branding logos, directional traffic signage, and integrated EV charging capabilities without redesigning the core mounting assembly.
Backed by over 45 years of accumulated manufacturing excellence, our partner production lines combine advanced engineering technologies with rigorous hand inspection protocol. We maintain full in-house capabilities across design, machining, surface finishing, and quality control testing, providing project buyers with a seamless supply chain solution.
Automated fiber laser cutting and multi-axis robotic welding cells guarantee exact dimensional tolerances, deep weld penetration, and flawless seamless joints on all steel and stainless steel bollard posts.
Every production batch undergoes comprehensive quality testing: hydrostatic pressure testing for hydraulic bollards, salt spray chamber testing (ASTM B117) for anti-corrosion coatings, and optical integrating sphere calibration for outdoor lighting fixtures.
To ensure items arrive damage-free at international job sites, products are encased in custom EPE foam, strapped to fumigated solid wooden pallets, and packed in heavy-duty honeycomb export cartons suitable for sea container consolidation.
Answers to common technical queries submitted by civil engineers, landscape specifiers, and international importers during the submittal process.
Surface-mounted bollards utilize heavy-duty expansion bolts or concrete anchors fitted through a bottom base flange plate. They provide visual traffic deterrence and low-speed parking lot security with minimal installation time. Direct-burial bollards extend 300mm to 1000mm deep into concrete footings, offering high mechanical resistance against vehicle impact. Shallow-mount bollards utilize interconnected sub-surface steel framing requiring only 200mm–400mm depth, engineered specifically for urban locations with shallow underground utility pipes where deep trenching is impossible.
For cold-climate installations (-20°C to -40°C), automatic bollards are equipped with low-viscosity synthetic hydraulic fluid (ISO VG 15/22) and integrated 24V thermostatic heating elements around the hydraulic cylinder. Additionally, the outer sleeve includes sub-grade thermal drainage layers to prevent ground-frost movement from binding the moving cylinder shaft.
For perimeter security barriers: PAS 68 (UK standard), IWA 14-1 (International standard), or ASTM F2656/F2656M (US standard) crash testing reports. For illuminated landscape bollards: CE, UL/cUL listing for wet locations, RoHS compliance, and IP65/IP67 ingress test reports. Factory management certification should include ISO 9001 (Quality Management) and ISO 14001 (Environmental Management).
Yes. As a direct factory manufacturer, full OEM/ODM customization is standard. Post diameters (e.g., 76mm, 89mm, 114mm, 168mm, 219mm, 273mm), tube wall thicknesses (3mm to 16mm), overall height, mounting flanges, reflective tape configurations, and RAL powder coat colors can be custom engineered according to architectural submittal drawings.
Standard inventory items (such as 89mm removable steel posts or flexible TPU delineators) are available with immediate dispatch within 3–7 days. Custom fabricated architectural bollards or electro-hydraulic automatic systems typically require 15–25 business days for production, assembly, and 100% factory inspection. Flexible MOQs are available to support both municipal pilot programs and full container load (FCL) commercial shipments.
Partner with a trusted manufacturer. Access dimensioned CAD drawings, photometric IES files, crash test certificates, and wholesale pricing catalogues instantly.
